DIP Switch Settings and Pin Definitions¶
This chapter provides information about how to use I/Os of Alderamin Pico MK4 Embedded System hardware.

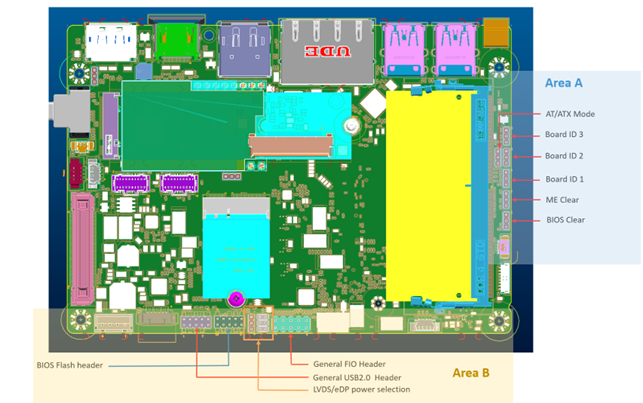

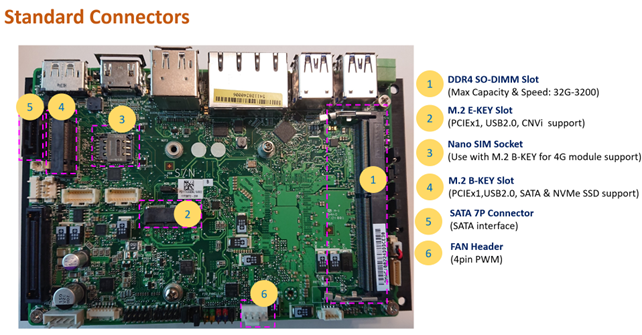

Jumper and Internal Connector Overall Placement¶

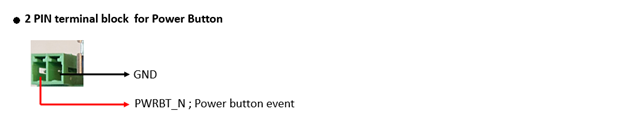

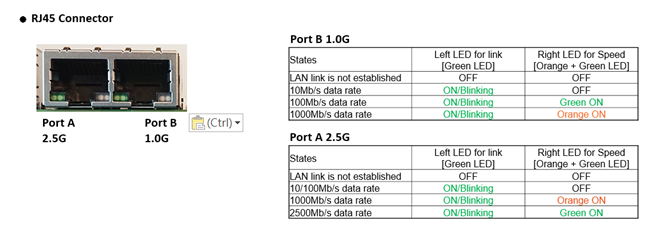

External Connector Pin Definition¶
COM#1-3 (RS232) / COM#4 (RS232/422/485)
3-pin terminal block for DC Input
Pin |
Signal |
|---|---|
1 |
DC IN +8~24VIN (ALDERAMIN PICO MK4) |
2 |
NC |
3 |
GND |
